Spring 2021
––––––––––––––––––––––––––––––––––––––––––––––
Professor James Lowder

Rotations, intersections, boolean operations, deformations and movement can be captured by descriptive geometry. Critical analyses of architecture, objects, and perception are produced through hand-drawn, graphic calculation techniques.
‍

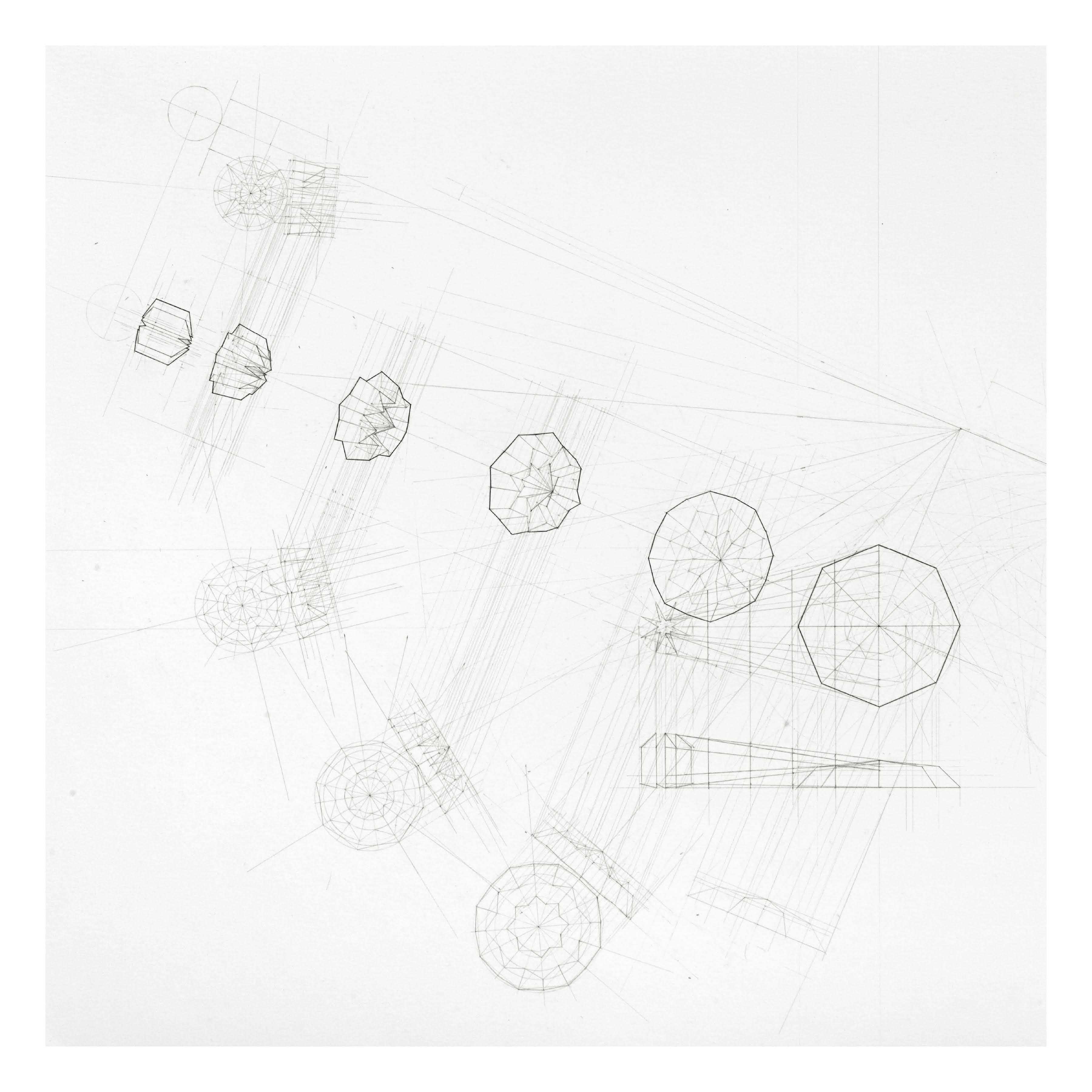

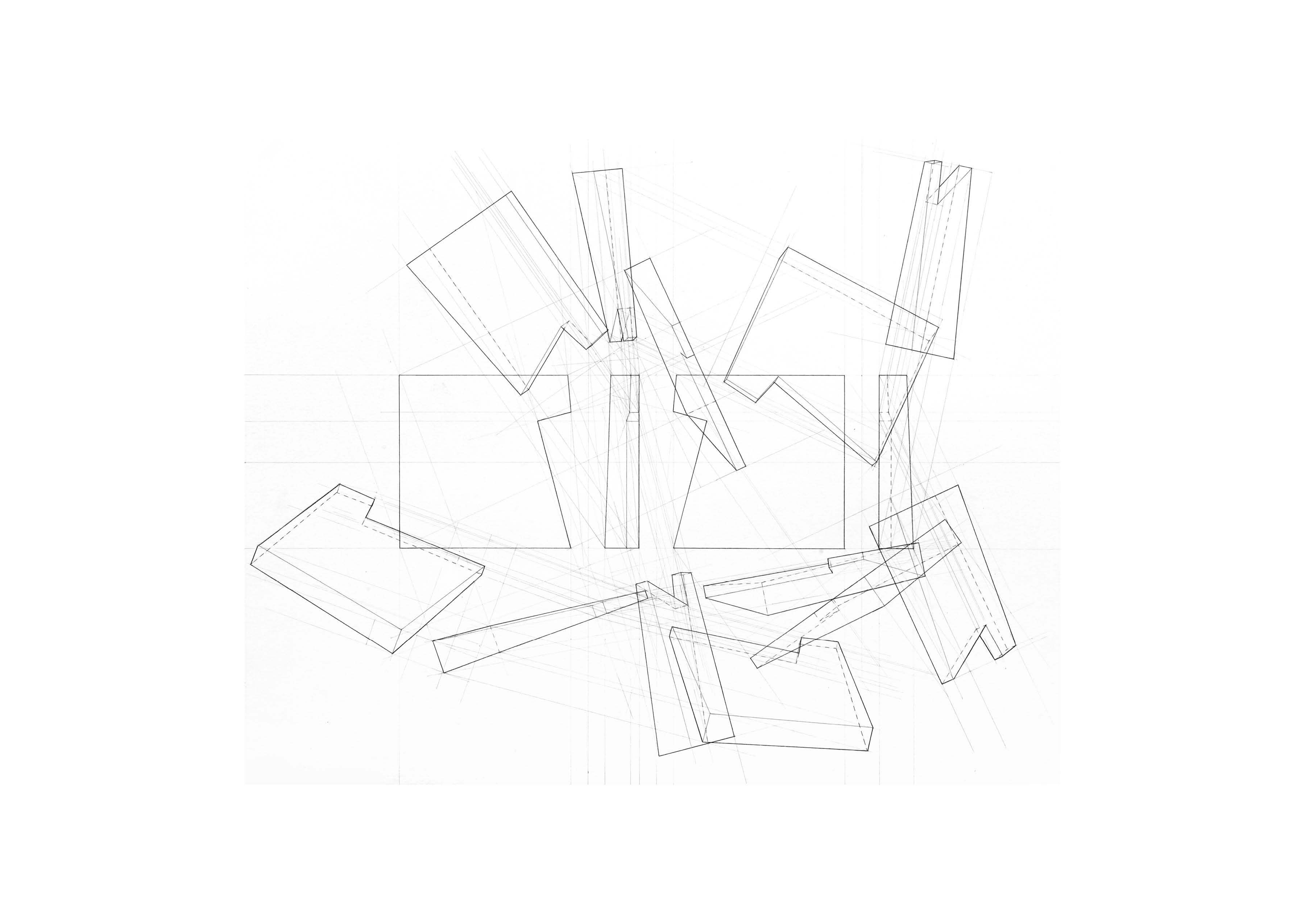

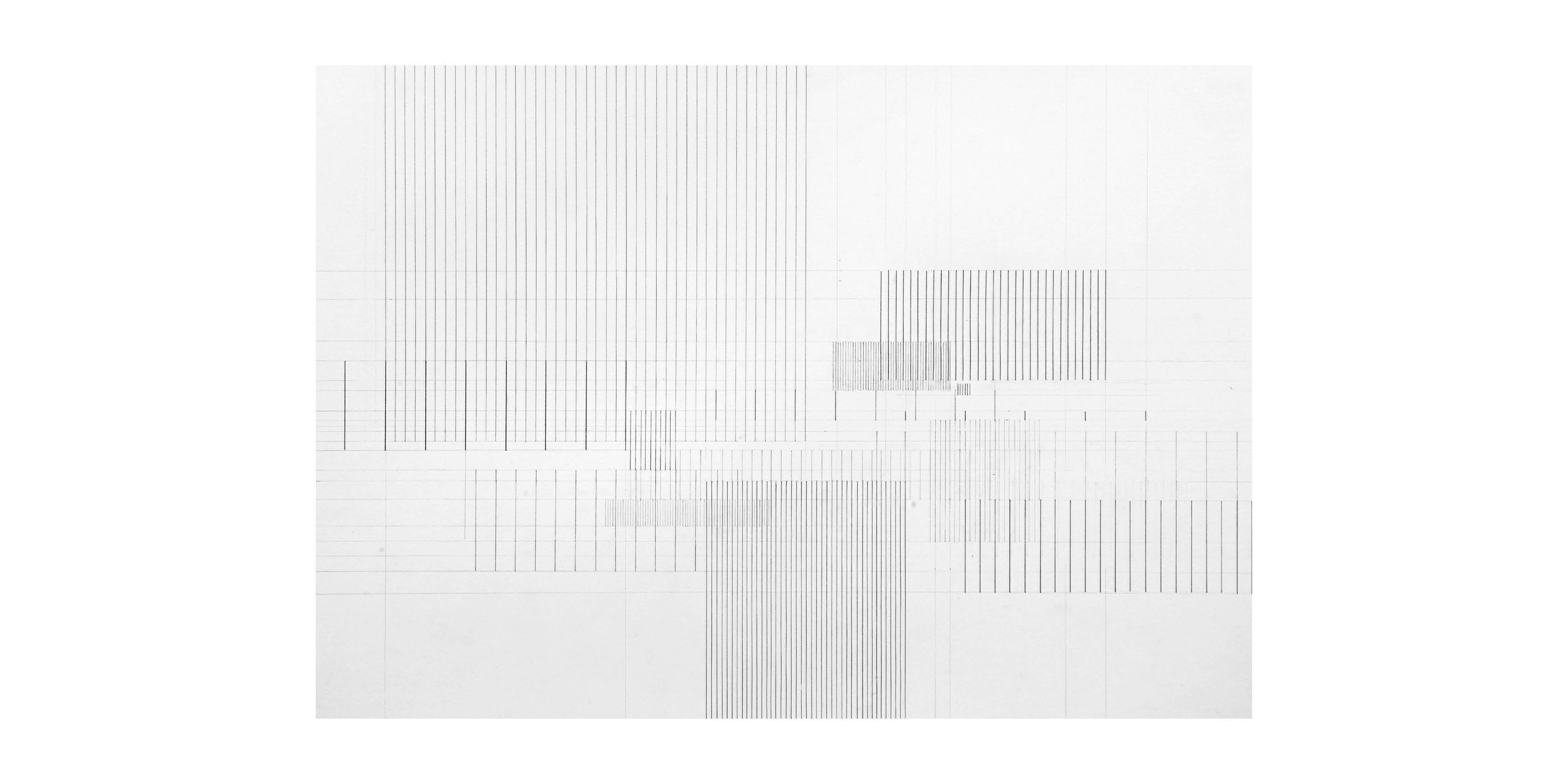

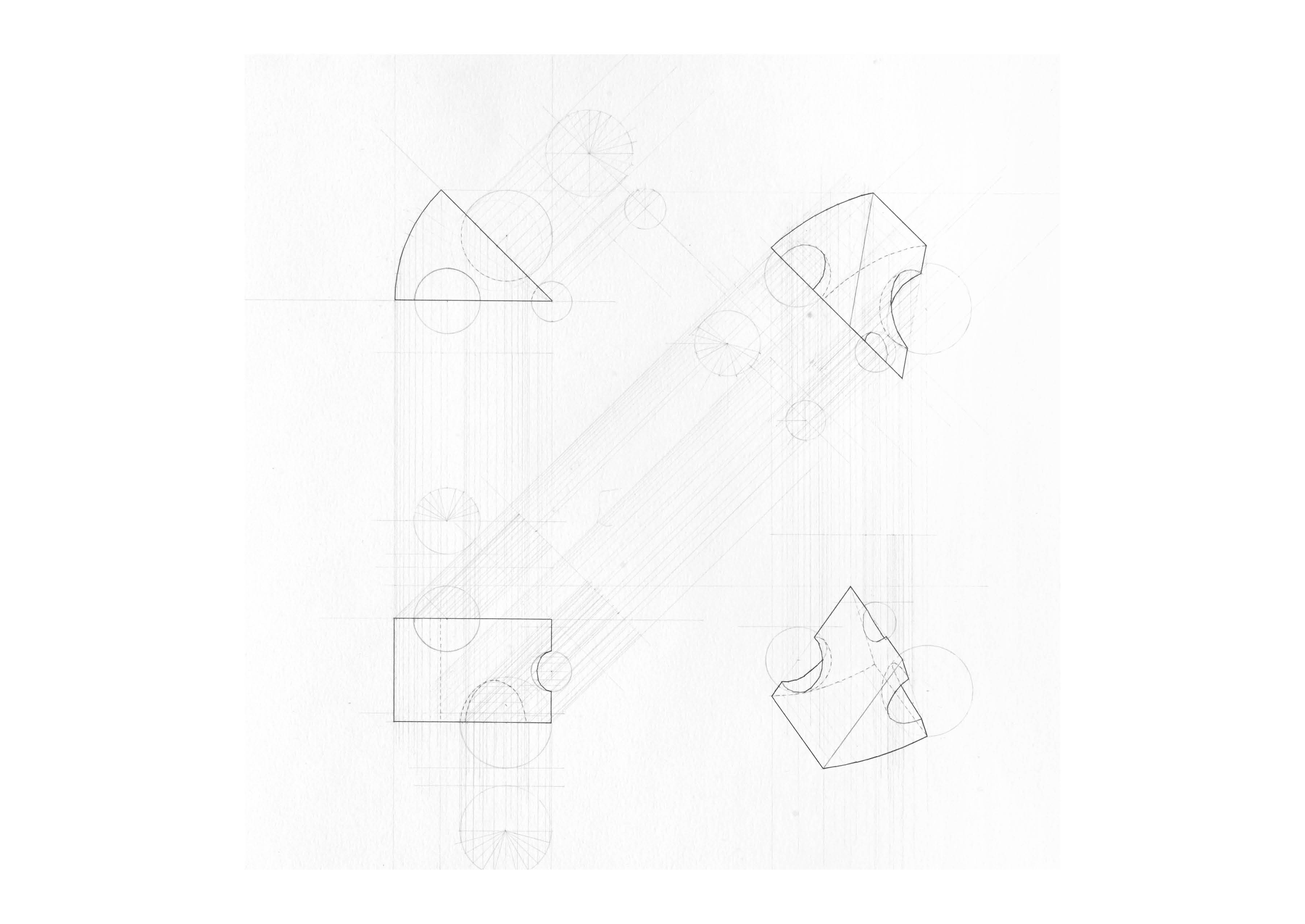

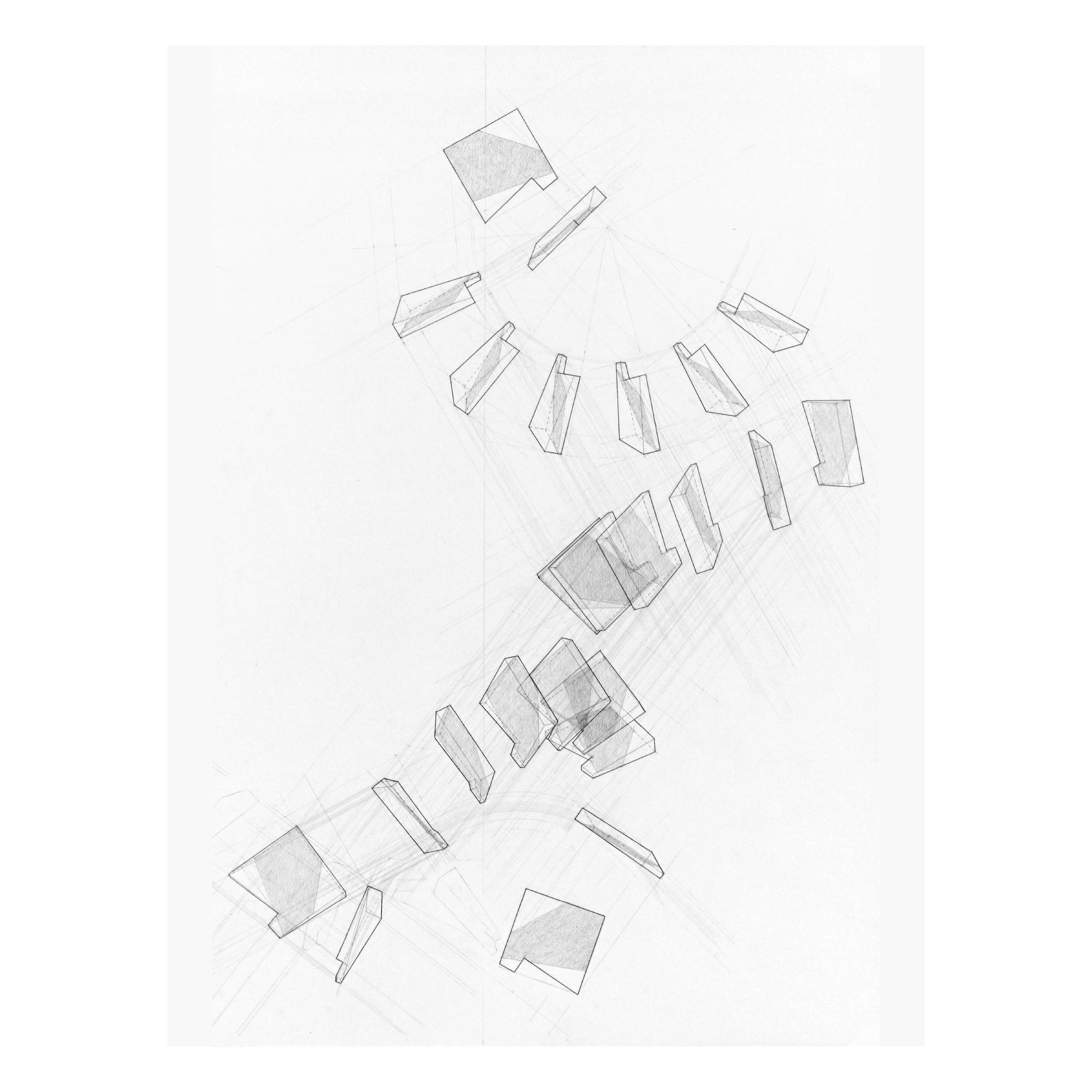

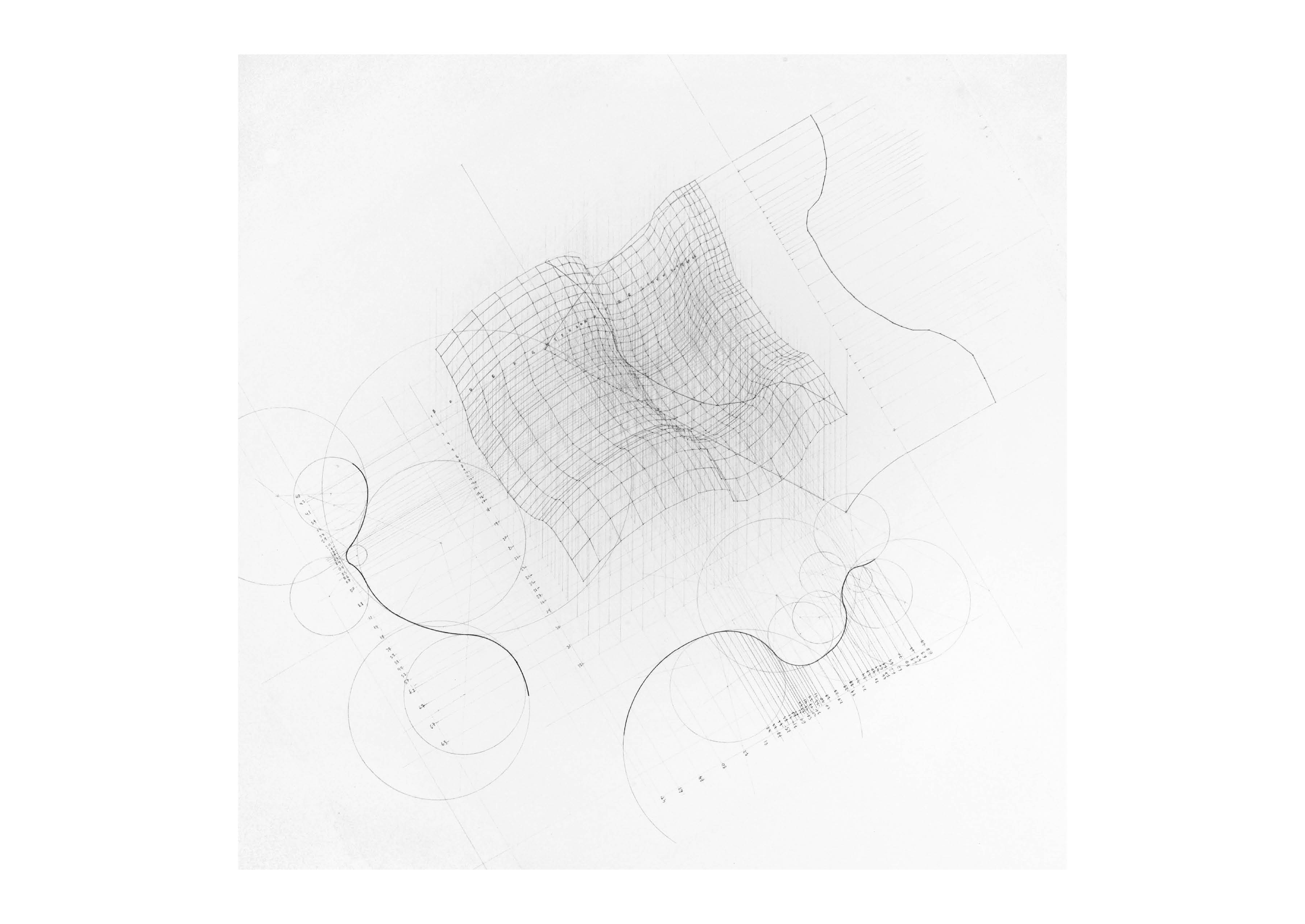

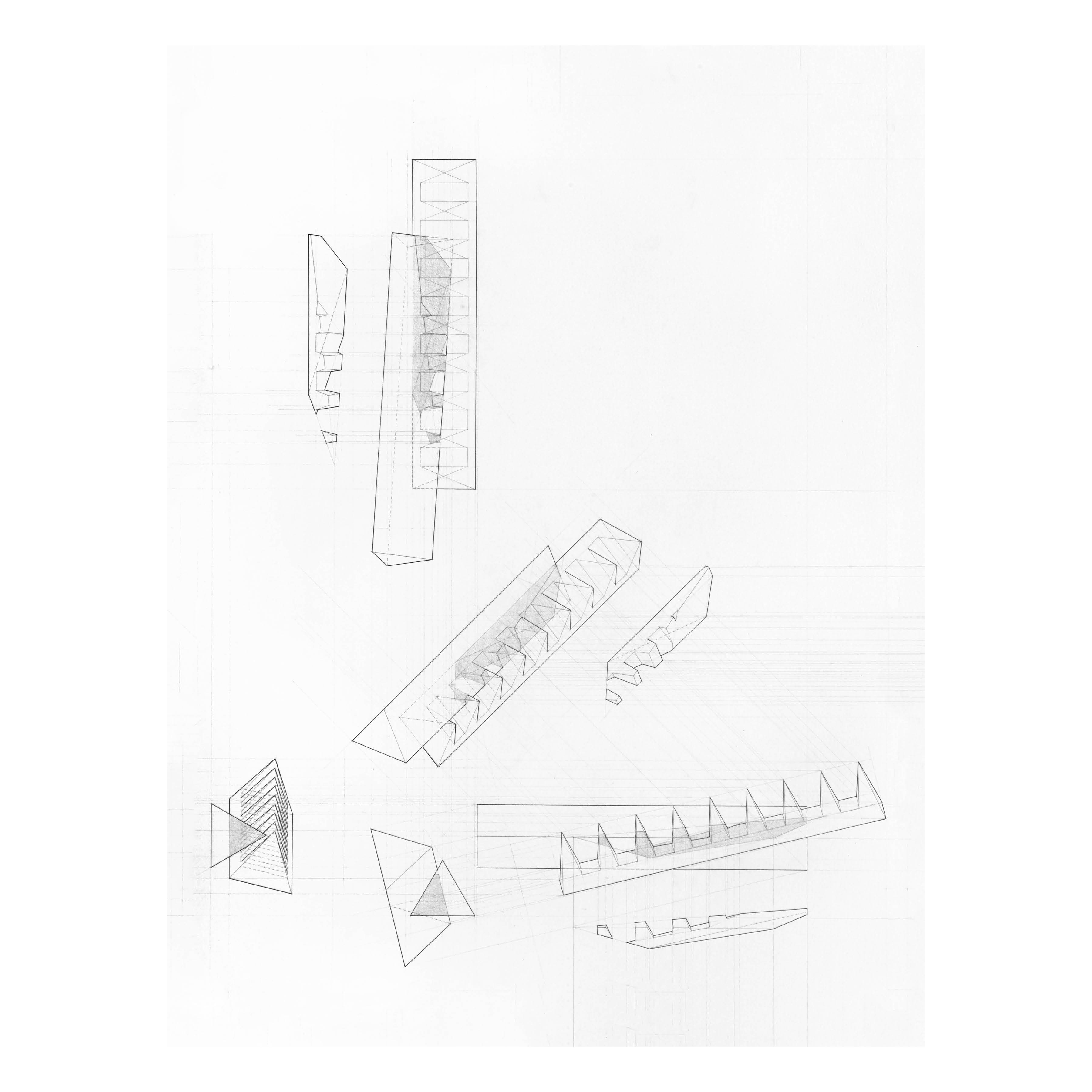

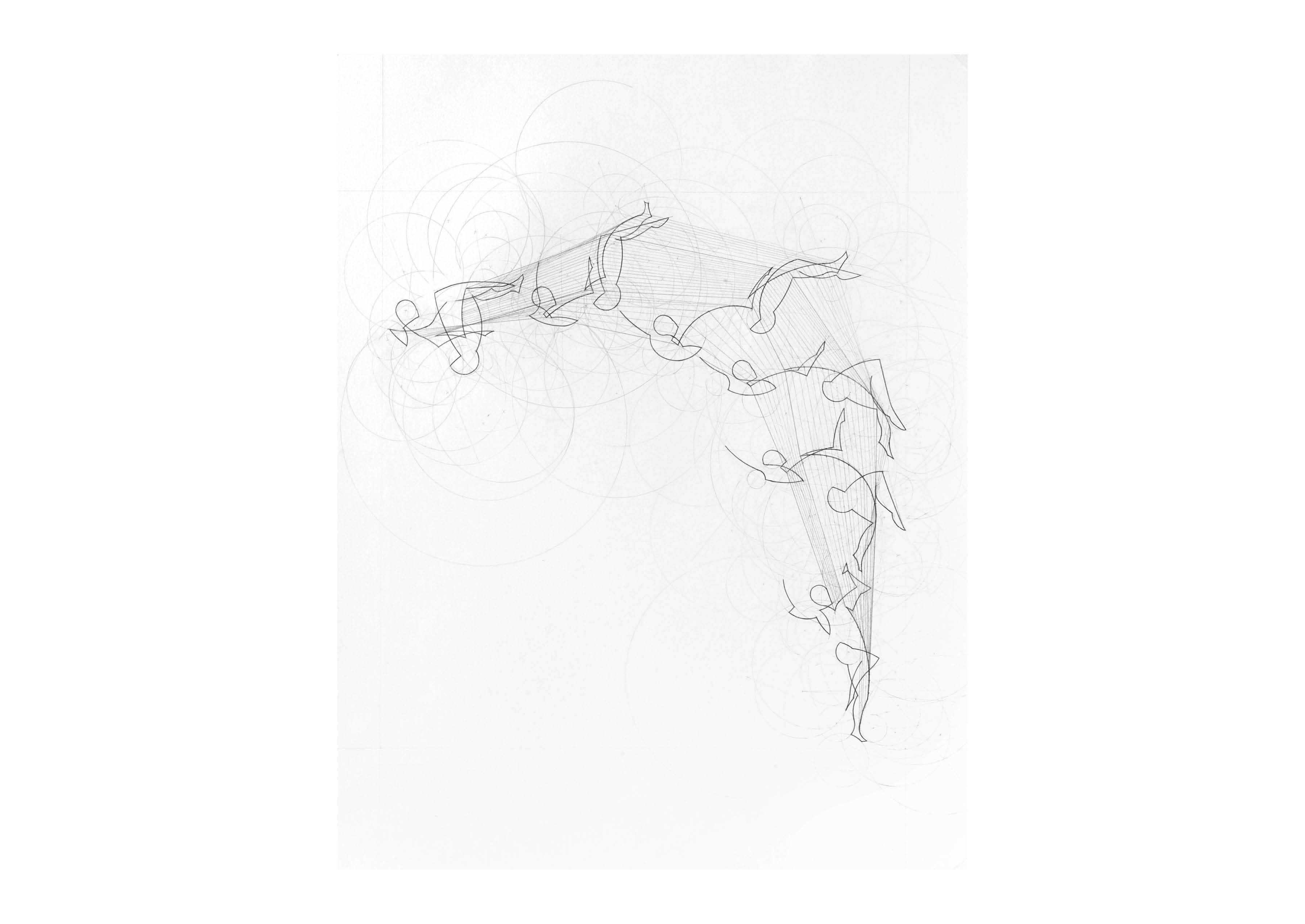

Top to bottom: 1) Rotation and return of geometry using spherical trigonometry methods, 2) Intersection of a Toblerone and its box, 3) Graphically calculated stages of opening an umbrella, 4) Fosbury Flop interpolation 5) Parallel line composition 6) Multiplication of two curves to form a resultant 7) SANAA Glass Pavilion 8) Cheese intersection 9) Rotation 10) Cheese intersection 2.0
